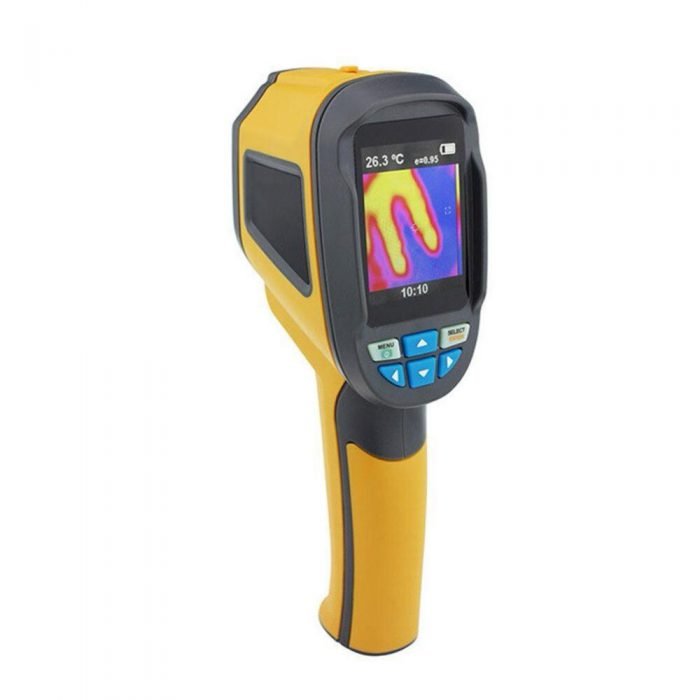

HSETIN HT02 HANDHELD THERMOGRAPHY CAMERA INFRARED THERMAL CAMERA DIGITAL INFRARED IMAGER TEMPERATURE TESTER WITH 2.4INCH COLOR LCD DISPLAY
- HT-02 is a thermal Imaging Camera that combines the functions of surface temperature measurement and real-time Thermal Imaging.
- To improve recognition, this product is equipped with a vision camera. Based on practical requirements, it can turn the thermal image into a visional image.
- Thermal image into the visional image. Thermal Image and visional image can be stored in PC which is used to generate a report or for printing.
- HT-02 is easy to operate. After seconds it can be tested. This product is the optimum product for electricians and maintainers. It can quickly find out the problem area.
- Handheld thermal imaging cameras are widely used in medical, archaeological, transportation, agriculture and other fields.
1. Display:2.4″ color display
2. Resolution: 60×60
4. Measuring mode: Infrared focal plane measuring temperature
5. Temperature range:-20’C~300’C(-4’F-572’F)
6. Measuring accuracy:+/-2% digital/+/-2’C
7. Image frequency:25Hz
8. Wavelength range:8-14um
9. Emissivity:0.1-1.0 adjustable
10. Focus Mode: Fixed
11. Palette: Iron color ,rainbow, black and white
12. Image Storage: 4G card
13. File format: bmp
14. Set control :unit adjustment/language/date time format/automatic shutdown
15. Battery type:4*AA alkaline batteries
16. Operating temperature:0·50℃
17. Storage temperature:-40·70℃
19. Vibration:2G ,IEC 60068-2-6
20. Drop resistance:2m
